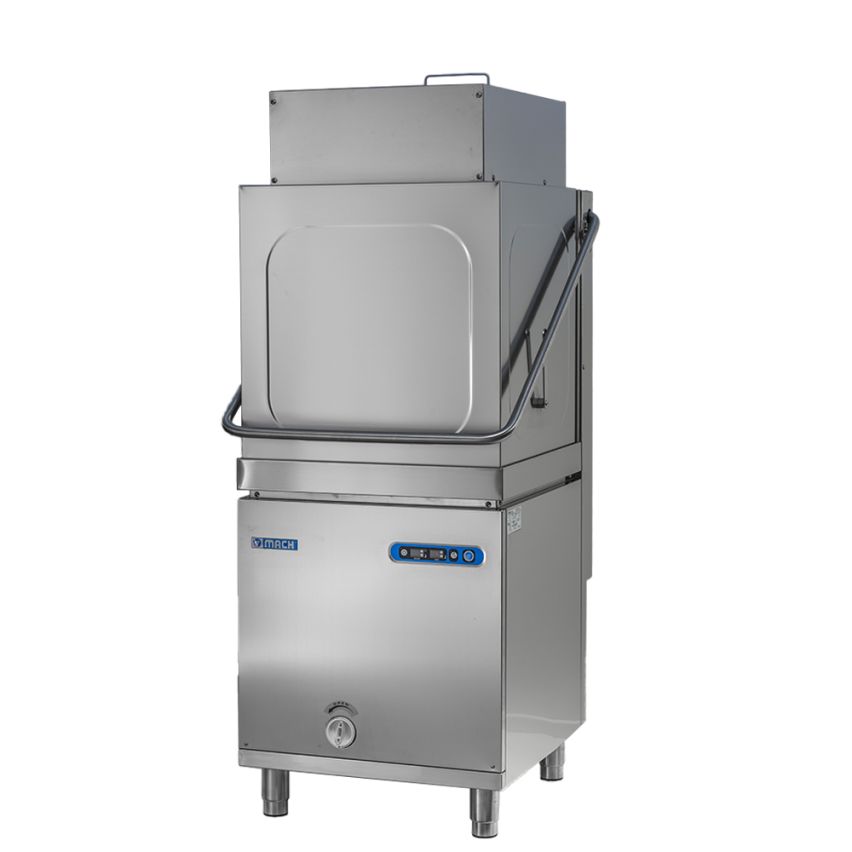

The Mach HT504.23RV Premium Line passthrough dishwasher is engineered for outstanding durability and efficiency, boasting a robust 100% stainless steel construction with no plastic parts. Its double-walled, fully insulated body, including an insulated double wall hood, minimizes heat loss and enhances energy efficiency. The machine features a 25-liter wash tank with molded rounded corners for easy cleaning and reduced debris buildup. Full-width wash tank filters and indirect tank water heating—where the heating element is separate from the tank—ensure effective operation. Each cycle consumes only 3.5 liters of water, and the machine performs a partial water change by automatically draining approximately 3.5 liters of dirty water between the wash and rinse phases.

The HT504.23RV is equipped with a TOUCH control panel offering five preset wash cycles ranging from 60 to 180 seconds, with an impressive capacity of 1200 to 400 pieces per hour depending on the cycle duration. It supports a useful washing height of 40 cm, accommodating dishes up to 50x50 cm in size, and includes two plate baskets, a flat basket, and two cutlery holders. The dishwasher features independent stainless steel lower and upper washing and rinsing arms for thorough cleaning.

To enhance user convenience and sustainability, the HT504.23RV incorporates several advanced features: a built-in rinse-aid pump, a detergent pump, and a drain pump with a filter. It also includes a built-in rinse booster pump, an insulated atmospheric rinse tank made from AISI 304L stainless steel, and a timed manual cold rinse option. The machine features a steam extraction process that operates in only 30 seconds without saturated steam and requires no external aspiration system, reducing energy consumption by 39%.

The HT504.23RV operates with a total power consumption of 6.95 kW, including a 0.9 kW washing pump, a 6 kW boiler heating element, and a 3 kW tank heating element. It is designed to operate quietly with a noise level of less than 70 dBA. Real-time digital displays provide information on boiler and tank temperatures and a countdown timer for each cycle. The machine can be used in straight-line and corner installations and is compatible with prewash inlet tables and outlet tables.

With its robust build, efficiency, advanced features, and innovative steam extraction technology, the Mach HT504.23RV exemplifies MACH’s commitment to high-quality, professional-grade passthrough dishwashing solutions.

• Robust long life machine.100% Stainless Steel construction. No plastic parts.
• Integrated steam condensation system. Double wall fully insulated body. Insulated double wall hood
• Moulded double wall wash tank with rounded corners
• Full-width wash tank filters
• The tank water heating is indirect (heating element is not inside the tank)
• 25 litre tank capacity . 13 litre boiler capacity.
• Water consumption per cycle 3.5 litres
• Useful washing height 41 cm, dish ?44 cm
• Magnetic microswitch to cut out operation of the appliance when door is opened.
• Square basket 50x50 cm basket compatability. (supplied with 2 plate baskets, 1 flat basket, 2 cutlery holders)
• TOUCH control panel with 5 preset wash cycle times.
• Displays show the boiler and tank temperature.
• Countdown of the washing cycle underway in minutes and seconds.
• Self-cleaning cycle (CLN)
• Washing cycle time 60 - 90 -120-150-180 seconds (capacity 1200 / 400 pc/h).
• Boiler and tank heating through thermostatically protected armoured heating elements (in exchange).
• Independent stainless steel lower/upper washing and rinsing arms.
• Built-in rinse-aid pump. Built in detergent pump. Built in Drain pump with filter
• Partial water change each cycle - automatic drain of approx. 3.5 litres of (dirty) water between wash and rinse phase.
• Can be used in straight-line and corner installations
• Built in Rinse Booster Pump and atmospheric boiler
• Built-in insulated atmospheric rinse tank made in AISI 304L stainless steel
• Built in Timed manual Cold Rinse
• Automatic start on hood closing
• "Steam extraction process in only 30''. Without saturated steam. No external aspiration system. Reducing energy consumption by 39%%"

Model

HT504.23RV

Voltage

415V 3N/50Hz

Watts

6.95 kw

Plug Supplied

No

Booster Pump Power

0.30 Kw

Washing pump power

0.9 kw

Boiler Heating element

6 kw

Tank Heating element

3 Kw

Noise level at 1 mt.

< 70 dbA.

Water consumption per cycle

3.5 litres

Washing cycle time

60-90-120-150-180 seconds

Capacity

capacity 1200 / 400 pc/h

Tank capacity

25 litre

Boiler capacity

13 litre

Washing chamber height

41 cm

Width (mm)

697

Depth (mm)

725

Height (mm)

1675 closed hood / 1940 open hood
