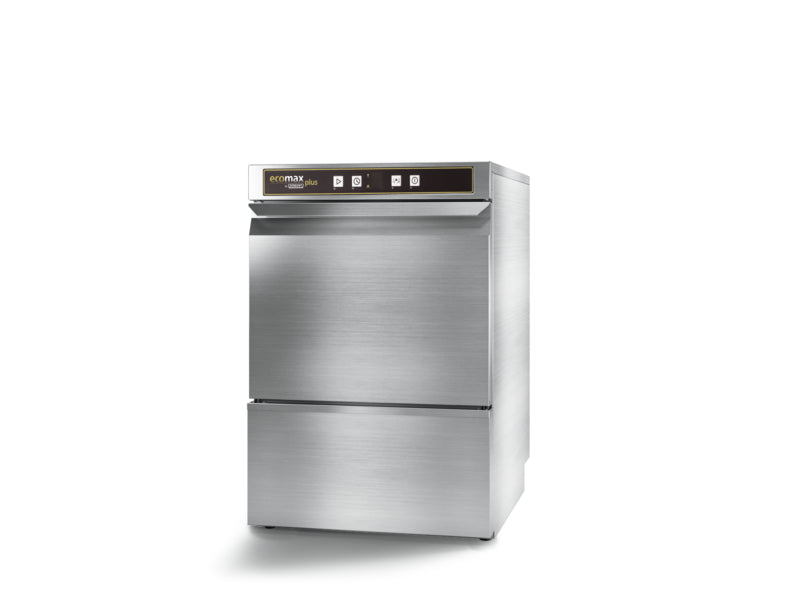

Hobart ECOMAXPLUSG415-D - ECOMAXPLUS Compact Width Glasswasher
- Front door glasswasher
- Nominal capacity up to 60 racks/h or 960 glasses/h
- 3 automatic cycles: 60 / 90 / 180 seconds
- Ready to install - completely equipped: fill / drain hose, power cord (240V connection), detergent dispenser, rinse aid dispenser, rinse pump, drain pump and back-flow preventer
- Tank frame and panels are stainless steel 1.4301
- 1 glass rack 396 x 396mm 4 sloped row
- COMPACT undercounter glasswasher
- LOW VOLUME (8litre) single sheet deep drawn wash tank - no welds
- EFFICIENT & GUARANTEED - 2.0 litres/cycle water consumption - rinse pump included as standard
- Electronic control with digital temperature read-out
- 3 CYCLES: 60 / 90 / 180 secs - Nominal capacity up to 60 racks/h
- HEAT & NOISE INSULATED - double walled housing and heat insulated front door
- Removable tank strainer, coarse filter and pump suction casing to maximise wash results and reliability
- Optional free-standing Reverse Osmosis (RO-IV / RO-S) system for polish free washing
- Integrated SELF CLEANING on drain out
- Top and bottom rotating wash and rinse arms
- ACCEPTS 432 x 356mm (17 x 14'') RACKS - stainless steel grid insert to accept other racks see optional equipment
- Ready to install - equiped with: fill/drain hoses, electrical cable & plug (15amp 240V), detergent & rinse aid dispensers, rinse pump, drain pump, back flow preventer (Watermark approved)
- Supplied with 1 off 396 x 396mm 4 sloped glass racks
- Watermark approved to WMTS-101:2018, Cert. WMKT21944
Technical data
| Cycle Times* | 60 / 90 / 180 sec. |
| Water Consumption | 2 l/cycle |
| Tank Capacity | 8 litres |
| Tank Heating | 0.8 kW |
| Power Supply | 240 / 50 / 1 |
| Booster Loading - Standard | 2.1 kW (interlocked) |
| Total Loading - Standard | 2.8 kW l 15 A |
| Wash Pump | 0.6 kW |
| Rack Size | 432 x 356 (17 x 14'') |
| Loading Height | 315 mm |
| Noise Level | 62 dB (A) |
| Weight (gross / net) | 64 / 58 kg |
Accessories
| Order number | Description |
|---|---|
| 1714 | Flat Rack 432 x 356 mm (17 x 14") |
| R-396 | Base rack 396 x 396 mm |

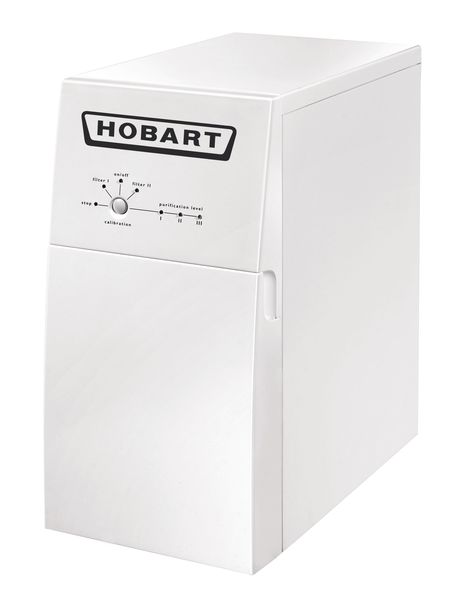

| RO-S | Small free standing reverse osmosis |
| TH-PI400 | Plate insert for R-396/R-390 |
| GR400 | Glass insert for R-396/R-390 |
| 01-294225-101 | ROI & ROS Replacement carbon pre-filter cartridge |
Product features
Brand
HOBART
Warranty
24 Months
Product Dimensions
460(W) x 700(H) x 590(D)mm
